Removes the following:
Heavy Metals:
Inorganic Salts:
Organic Compounds:
Dissolved Solids:
Chlorine and Chloramines:
Other Contaminants:
Having access to pure, clean water for drinking, washing produce and cooking is essential for good health. Anytime you are drinking or cooking with water from Zepter International’s EdelWasser system, that’s an investment in yourself that everyone should make. The product comes in a beautifully designed black or orange colour.
Installation and service of purchased product should be carried out by the Customer on their own or with local plumber or hire local company which provides such services – on Customer cost. These activities should be carried out according to the Instruction Manual delivered with product. Instruction Manual is also available here
PWC-670-ORANGE

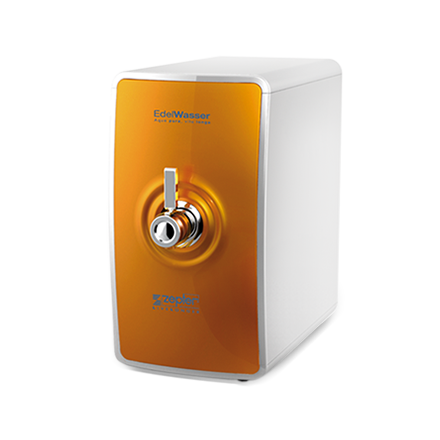

EdelWasser (Orange)
6
4.5
For home use. A device for water filtration by reverse osmosis.
HOME ART. & SALES SERVICES AG , Sihleggstrasse 23 , 8832 Wollerau-Switzerland
Water filtration
Reverse osmosis
RO membrane filter 20 GPD (main), carbon filter, mechanical filter, antibacterial filter
200 mm (width) x 390 mm (depth) x 370 mm (height)
Black&White
From 5ºC to + 35ºC
76,8 l/d - 112 l/d (for conditions: water temperature 25 degC, 138 kPa / 1,34 bar/20 psi / 344,74 kPa / 3,45 bar / 50 psi)
Float valve (cutting off water filtration)
NOT APPLICABLE
Recommended term of replacement, counted from the date of installation: PWC-670-01 NEO SENSE - mechanical filter - every 6 months PWC-670-02 INNO SENSE – mechanical-carbon filter - every 18 months PWC-670-03 RO membrane filter 20 GPD - every 20-24 months PWC-670-09 Antibacterial filter – etery 20-12 months The table shows only approximate, estimated series of exchanges not their warranty period. To ensure the most optimal filtration you may need to replace filters with greater frequency. Speed and quality of the filtration (the yield of water) is mainly dependent on water pressure, temperature and quality of the filtered water. Thus, reverse osmosis system always generate a recoil water. For EDELWASSER the ratio is provided 4:1 and in case of low pressure on the network even 6:1.
Service and installation manual The device (with filters Neo-sense, reverse osmosis and Inno-sense) Elbow (1/4 inch white) - 4 pieces Clamp into the drain - 1 piece Water hoses (double enclosure, ¼ inch) - 5m Adapter ½ (valve1/4) - 1 piece Antibacterial filter – 1 piece Band clips x 2
Seller provides FREE installation. EDELWASSER, the device for purifying water, is designed to be mounted on the worktop. Installation, operation, maintenance and repair should be performed only by the Zepter authorized service personnel. We recommend preparing the installation site: • The distance between the place of connection and the place of installation of the device should not exceed 1.5 m • The distance from the source of water should not exceed 3 m. • The distance from the outflow of consumed water should not exceed 3 m • The dimensions of the installation site should be consistent with the dimensions of the EDELWASSER. It is recommended to install the device near the sink to make the inlet and outlet water hoses easily accessible. Note: Depending on the installation place and technical possibilities of connecting it to the drainage system, it may be necessary to drill a hole, e,g. in the kitchen worktop. Therefore, any additional work to prepare the site and infrastructure for installation /connection of the filter (e.g. specialized drilling of holes in stone, marble or other tops, adaptation of the drainage system, installation of independent water supplies, securing additional connections and valves) must be carried out by the customer himself and at his own expense. Zepter provides a standard/basic installation to be placed in the prepared infrastructure with a simple drilling of the kitchen worktop.
Korea
2 years
Declaration of Conformity concerning the Regulation (EC) Nº1935/2004 on materials and articles intended to come into contact with food.
